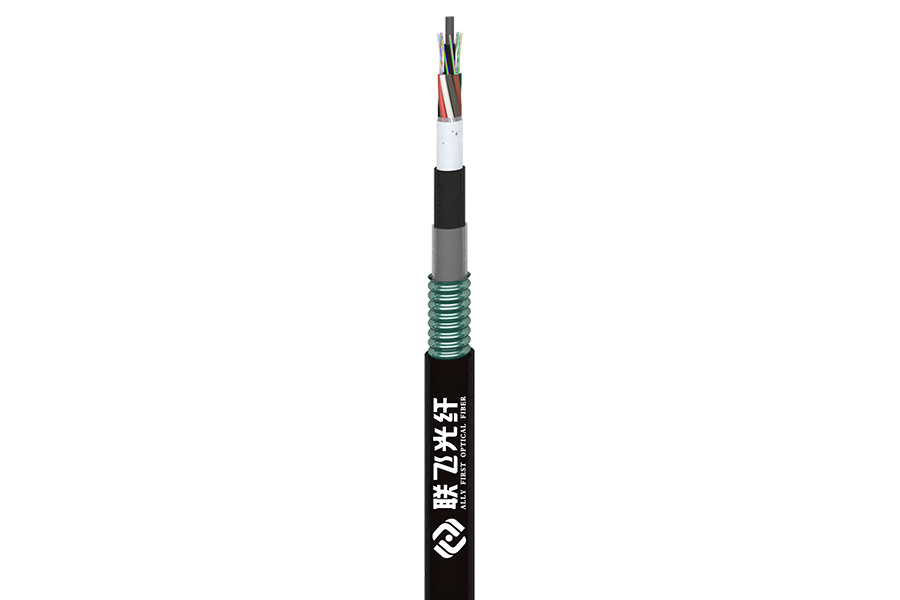

Stranded Loose Tube Armored Cable with Double Sheaths（GYTA53）

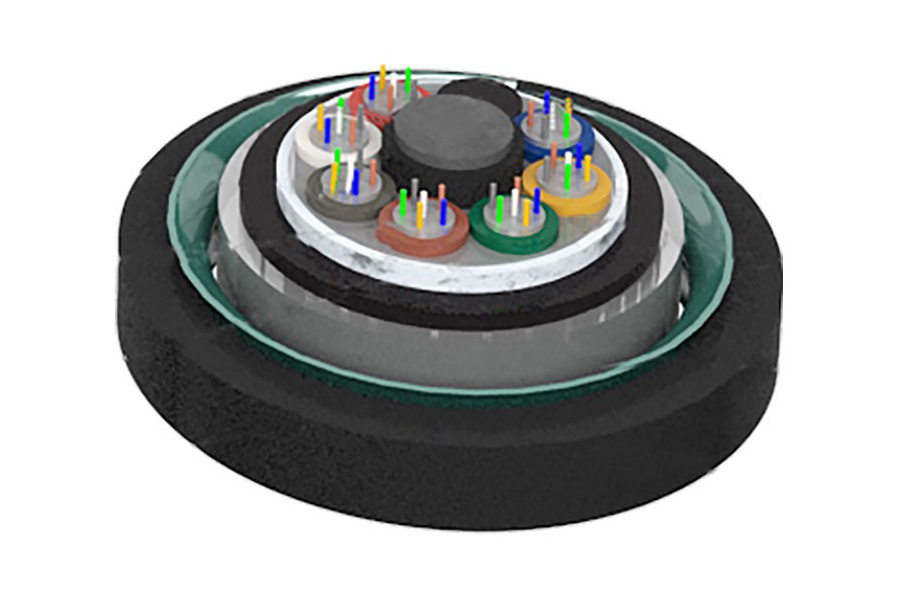

In the GYTA53 cable, single-mode/multimode fibers are positioned in the loose tubes, which are made of high modulus plastic materials, while the loose tubes strand together around metallic central strength member into a compact and circular cable core. For certain high fiber count cables, the strength member would be covered with polyethylene (PE). The water-blocking materials are distributed into interstices of the cable core. An APL is longitudinally applied around the cable core, then covered with a PE inner sheath; and the PSP is longitudinally applied over the PE inner sheath before a PE outer sheath is extruded over it.
- Product Features
-
• Good mechanical and temperature performance;
• High strength loose tube that is hydrolysis resistant;
• Special tube filling compound ensure a critical protection of fiber;
• Crush resistance and flexibility;
• The following measures are taken to ensure the cable watertight;
- Steel wire as the central strength member;
- Loose tube filling compound;
- 100% cable core filling;
- APL moisture barrier;
- PSP enhanced moisture resistance
- Fine water-blocking materials
- Technical Characteristics
-
Type
Fiber count
Tubes
Fillers
Cable weight
（kg/km）
Tensile strength
Long/short term(N)
Crush Long/
short term(N/100mm)GYTA53-2~6Xn
2~6
1
5
177
1000/3000
1000/3000
GYTA53-8~12Xn
8~12
2
4
177
GYTA53-14~18Xn
14~18
3
3
177
GYTA53-20~24Xn
20~24
4
2
177
GYTA53-26~30Xn
26~30
5
1
177
GYTA53-32~36Xn
32~36
6
0
177
GYTA53-38~48Xn
38~48
4
1
194
GYTA53-50~60Xn
50~60
5
0
194
GYTA53-62~72Xn
62~72
6
0
204
GYTA53-74~84Xn
74~84
7
1
239
GYTA53-86~96Xn
86~96
8
0
239
GYTA53-98~108Xn
98~108
9
1
275
GYTA53-110~120Xn
110~120
10
0
275
GYTA53-122~132Xn
122~132
11
1
312
GYTA53-134~144Xn
134~144
12
0
312
GYTA53-146~216Xn
146~216
13~18
5~0
312
Transport/storage temperature :-40°C to +70°C
Standard length: 2,000m ; other lengths are also availabl
