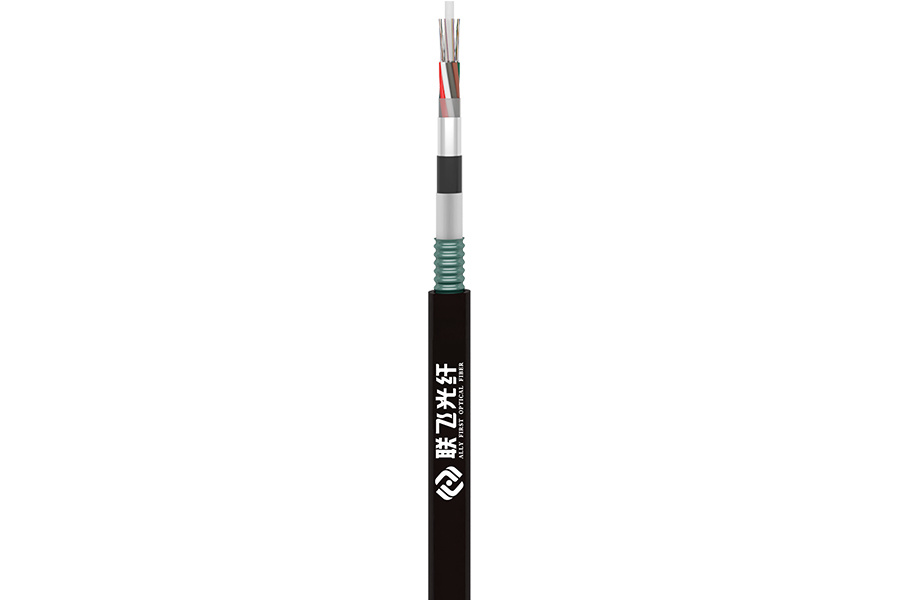

Stranded Loose Tube Non-metallic Strength Member Armored Cable （GYFTA53）

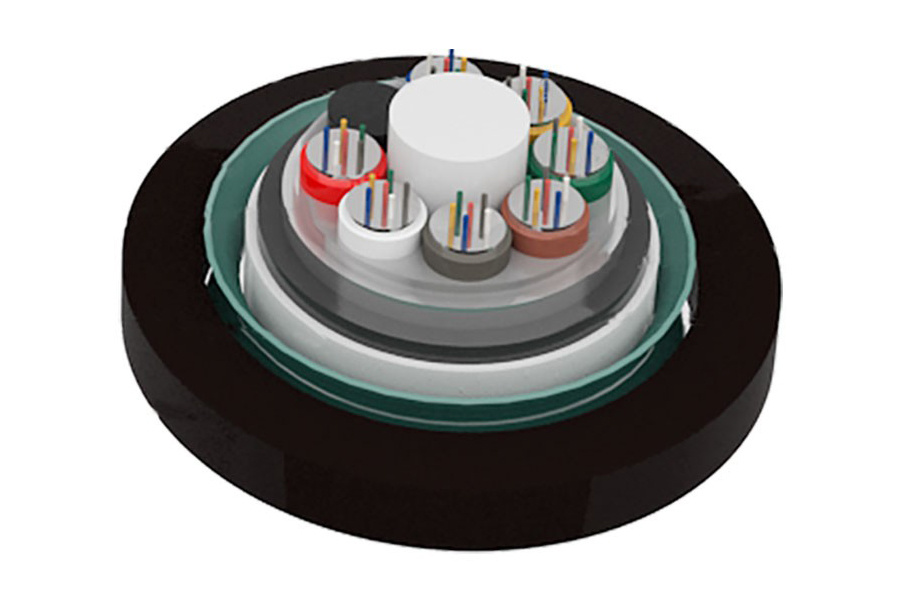

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. A FRP, sometimes sheathed with polyethylene (PE) for cable with high fiber count. The tubes (and fillers) are stranded around the strength member into a compact and circular core. The gap in the cable core is filled with water blocking filler. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is extruded with a layer of polyethylene inner sheath, and the double-sided plastic coated belt (PSP) is longitudinally coated and extruded with polyethylene outer sheath to form the cable.
- Product features
-
• Good mechanical and temperature performance;
• High strength loose tube that is hydrolysis resistant;
• Special tube filling compound ensure a critical protection of fiber;
• Crush resistance and flexibility;
• The following measures are taken to ensure the cable watertight;
- Single Fiber Reinforced Plastic as the central strength member;
- Loose tube filling compound;
- 100% cable core filling;
- APL moisture barrier;
- PSP enhanced moisture resistance;
- Fine water-blocking materials prevent vertical fluid penetration
- Technical Characteristics
-
Type
Fiber count
Tubes
Fillers
Cable weight
（kg/km）
Tensile strength
Long/short term(N)
Crush Long/
short term(N/100mm)GYFTA53-2~6Xn
2~6
1
7
228
1000/3000
12.5D/25D
GYFTA53-8~12Xn
8~12
2
6
228
GYFTA53-14~18Xn
14~18
3
5
228
GYFTA53-20~24Xn
20~24
4
4
228
GYFTA53-26~30Xn
26~30
5
3
228
GYFTA53-32~36Xn
32~36
6
2
228
GYFTA53-38~42Xn
38~42
7
1
228
GYFTA53-44~48Xn
44~48
8
0
228
GYFTA53-50~60Xn
50~60
5
3
240
GYFTA53-62~72Xn
62~72
6
2
240
GYFTA53-74~84Xn
74~84
7
1
240
GYFTA53-86~96Xn
86~96
8
0
240
GYFTA53-98~108Xn
98~108
9
1
276
GYFTA53-110~120Xn
110~120
10
0
276
GYFTA53-122~132Xn
122~132
11
1
326
GYFTA53-134~144Xn
134~144
12
0
326
Transport/storage temperature：-40°C to +70°C
Standard length: 2,000m ; other lengths are also availabl
