Stranded Loose Tube Armored Cable （GYTY53）

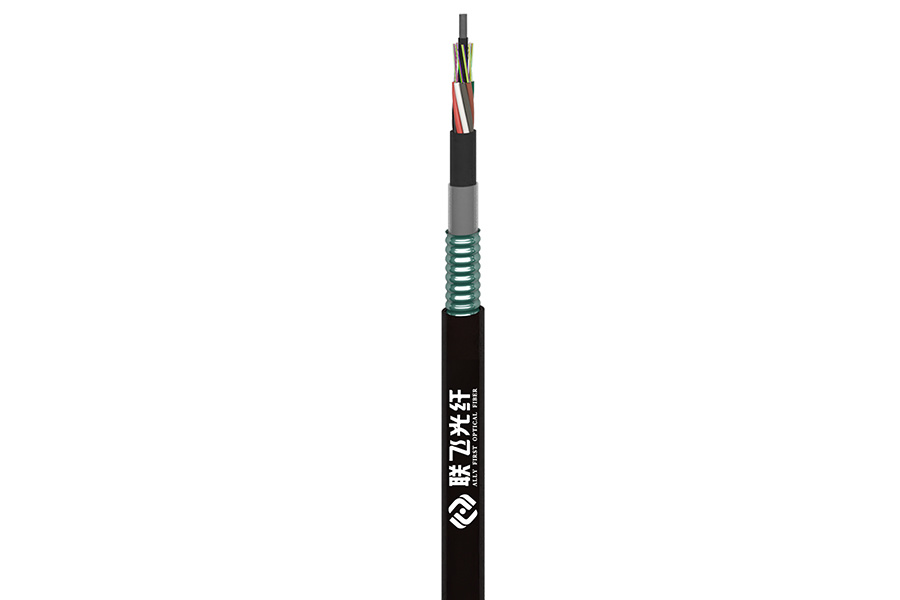

GYTY 53 optical cable is constructed by sheathing 250µm optical fiber into a loose tube made of high modulus material, and filling the loose tube with waterproof compound. The center of the cable core is a metal reinforcing core. For some optical cables with core numbers, a layer of polyethylene (PE) should be extruded outside the metal reinforced core. Loose tube (and fillers) are twisted around the central reinforcing core to form a compact and round cable core. The gap in the cable core is filled with water blocking filler. The cable core is extruded with a layer of polyethylene inner sheath, and the double-sided plastic-coated steel belt (PSP) is longitudinally coated and extruded with polyethylene sheath to form the cable.
- Product Features
-
• Good mechanical and temperature performance;
• High strength loose tube that is hydrolysis resistant;
• Special tube filling compound ensure a critical protection of fiber;
• Crush resistance and flexibility;
• The following measures are taken to ensure the cable watertight;
- Single steel wire as the central strength member;
- Loose tube filling compound;
- 100% cable core filling;
- PSP enhanced moisture resistance
- Fine water-blocking materials
- Technical Characteristics
-
Type
Fiber count
Tubes
Fillers
Cable weight
（kg/km）
Tensile strength
Long/short term(N)
Crush Long/
short term(N/100mm)GYTY53-2~6Xn
2~6
1
5
160
1000/3000
1000/3000
GYTY53-8~12Xn
8~12
2
4
160
GYTY53-14~18Xn
14~18
3
3
160
GYTY53-20~24Xn
20~24
4
2
160
GYTY53-26~30Xn
26~30
5
1
160
GYTY53-32~36Xn
32~36
6
0
160
GYTY53-38~48Xn
38~48
4
1
174
GYTY53-50~60Xn
50~60
5
0
174
GYTY53-62~72Xn
62~72
6
0
185
GYTY53-74~84Xn
74~84
7
1
214
GYTY53-86~96Xn
86~96
8
0
214
GYTY53-98~108Xn
98~108
9
1
245
GYTY53-110~120Xn
110~120
10
0
245
GYTY53-122~132Xn
122~132
11
1
281
GYTY53-134~144Xn
134~144
12
0
281
GYTY53-146~216Xn
146~216
13~18
5~0
281
Transport/storage temperature ： -40°C to +70°C
Standard length: 2,000m ; other lengths are also available
