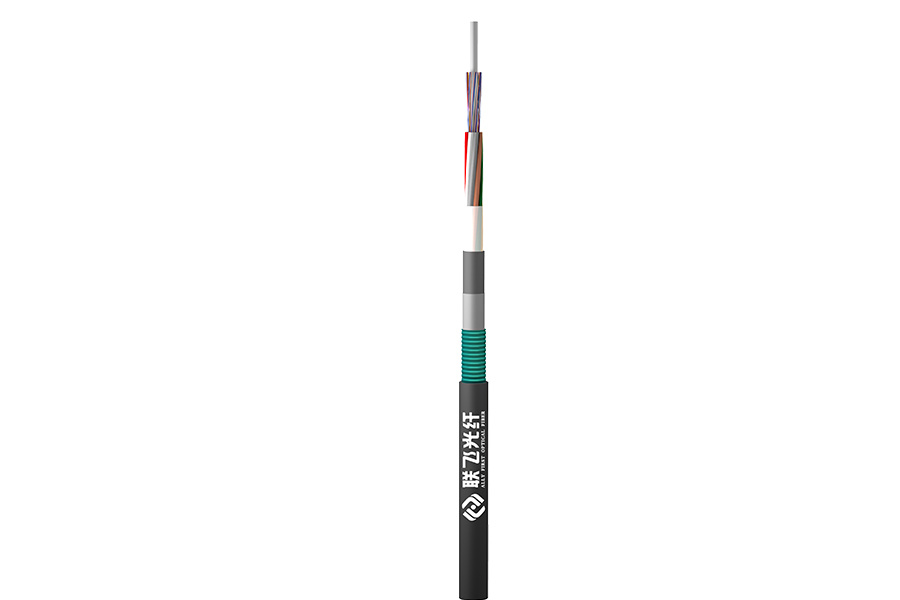

Stranded Loose Tube Non-metallic Strength Member Armored Cable （GYFTY53）

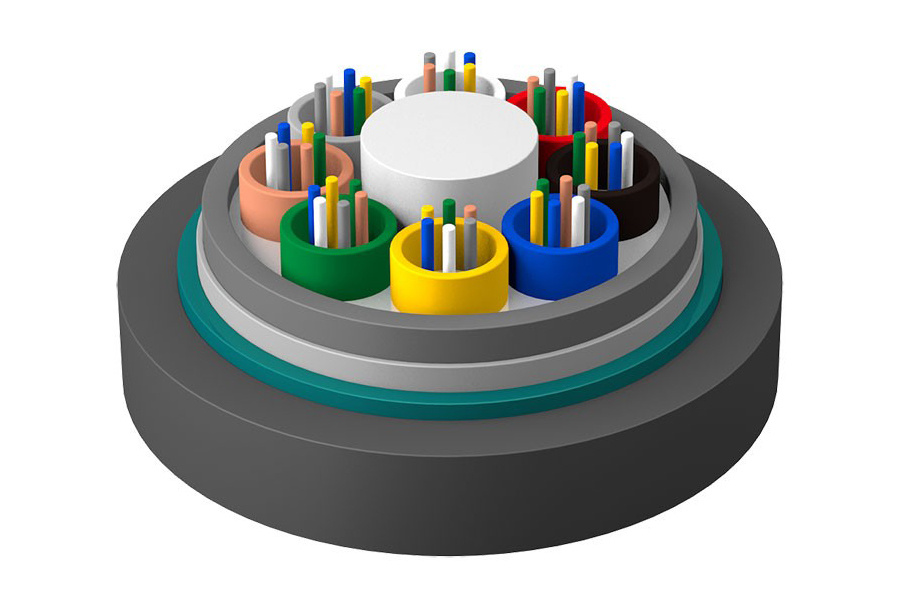

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. A FRP, sometimes sheathed with polyethylene (PE) for cable with high fiber count. The tubes (and fillers) are stranded around the strength member into a compact and circular core. The gap in the cable core is filled with water blocking filler. The cable core is extruded with a layer of polyethylene inner sheath, and the double-sided plastic-coated belt (PSP) is longitudinally coated and extruded with polyethylene outer sheath to form the cable.
- Product Features
-
• Good mechanical and temperature performance;
• High strength loose tube that is hydrolysis resistant;
• Special tube filling compound ensure a critical protection of fiber;
• Crush resistance and flexibility:
• The following measures are taken to ensure the cable watertight:
- Single Fiber Reinforced Plastic as the central strength member;
- Loose tube filling compound;
- 100% cable core filling;
- PSP enhanced moisture resistance
- Fine water-blocking materials
- Technical Characteristics
-
Type
Fiber count
Tubes
Fillers
Cable weight
（kg/km）
Tensile strength
Long/short term(N)
Crush Long/
short term(N/100mm)GYFTY53-2~6Xn
2~6
1
7
201
1000/3000
1000/3000
GYFTY53-8~12Xn
8~12
2
6
201
GYFTY53-14~18Xn
14~18
3
5
201
GYFTY53-20~24Xn
20~24
4
4
201
GYFTY53-26~30Xn
26~30
5
3
201
GYFTY53-32~36Xn
32~36
6
2
201
GYFTY53-38~42Xn
38~42
7
1
201
GYFTY53-44~48Xn
44~48
8
0
201
GYFTY53-50~60Xn
50~60
5
3
213
GYFTY53-62~72Xn
62~72
6
2
213
GYFTY53-74~84Xn
74~84
7
1
213
GYFTY53-86~96Xn
86~96
8
0
213
GYFTY53-98~108Xn
98~108
9
1
244
GYFTY53-110~120Xn
110~120
10
0
244
GYFTY53-122~132Xn
122~132
11
1
288
GYFTY53-134~144Xn
134~144
12
0
288
Transport/storage temperature : -40°C to +70°C
Standard length: 2,000m ; other lengths are also available
