Unitube Light-armored Cable (GYXTW)

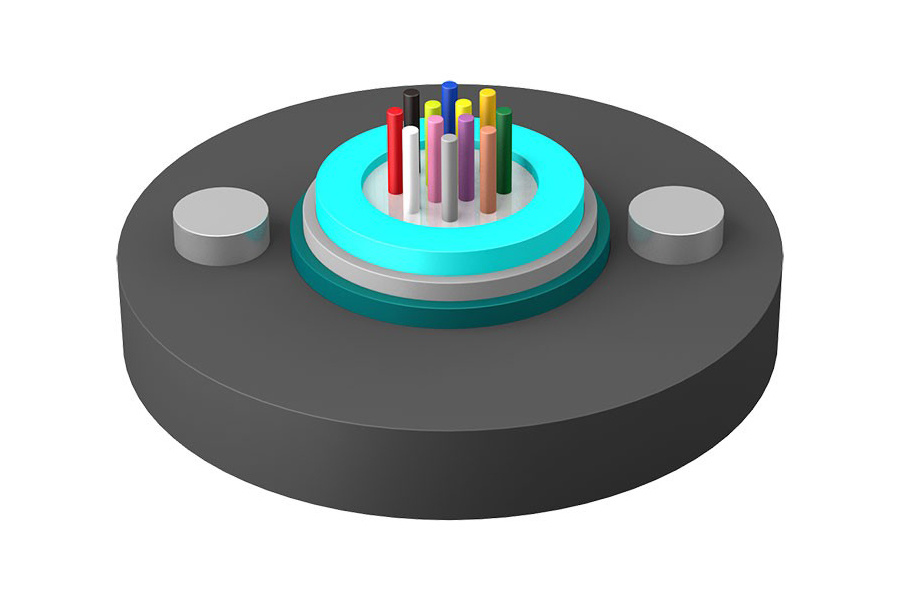

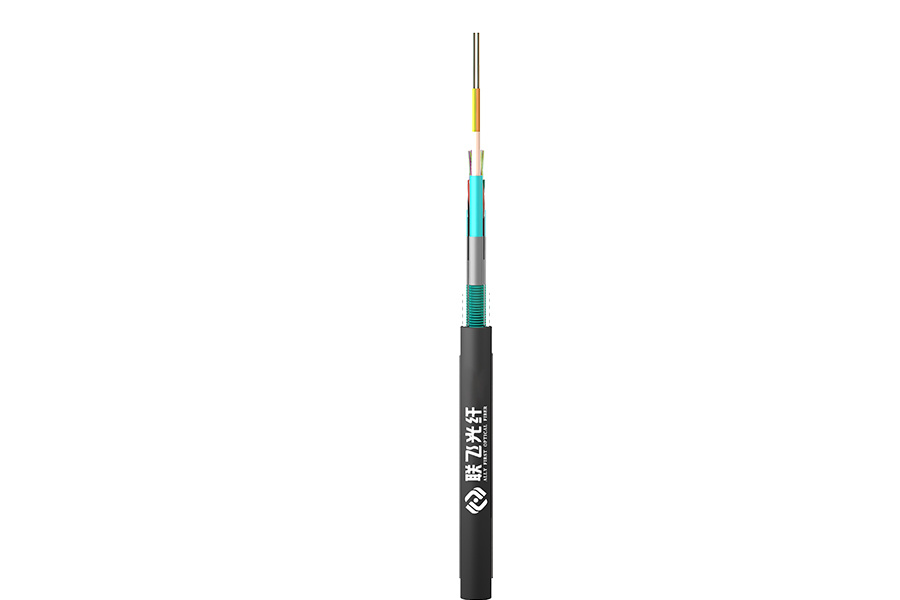

The fibers, 250um, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of double-sided plastic-coated steel belt (PSP) longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.
- Product Features
-
• Good mechanical and temperature performance;
• High strength loose tube that is hydrolysis resistant;
• Special tube filling compound ensure a critical protection of fiber;
• Crush resistance and flexibility;
• PSP enhanced moisture resistance;
• Two parallel steel wires ensure tensile strength;
• Small diameter, light weight and friendly installation;
• Long delivery length.
- Technical Characteristics
-
Type
Fiber count
Cable weight
（kg/km）
Tensile strength
Long/short term(N)
Crush Long/
short term(N/100mm)Bending radius static/dynamic
(mm)GYXS/GYXTW-2~12Xn
2~12
82
600/1500
300/1000
10D/20D
GYXS/GYXTW-14~24Xn
14~24
127
GYXS/GYXTW-2~12Xn
2~12
124
1000/3000
GYXS/GYXTW-14~24Xn
14~24
147
Transport/storage temperature: -40°C to +70°C
Standard length: 2,000m ; other lengths are also available
