Figure 8 Cable (GYTC8A）

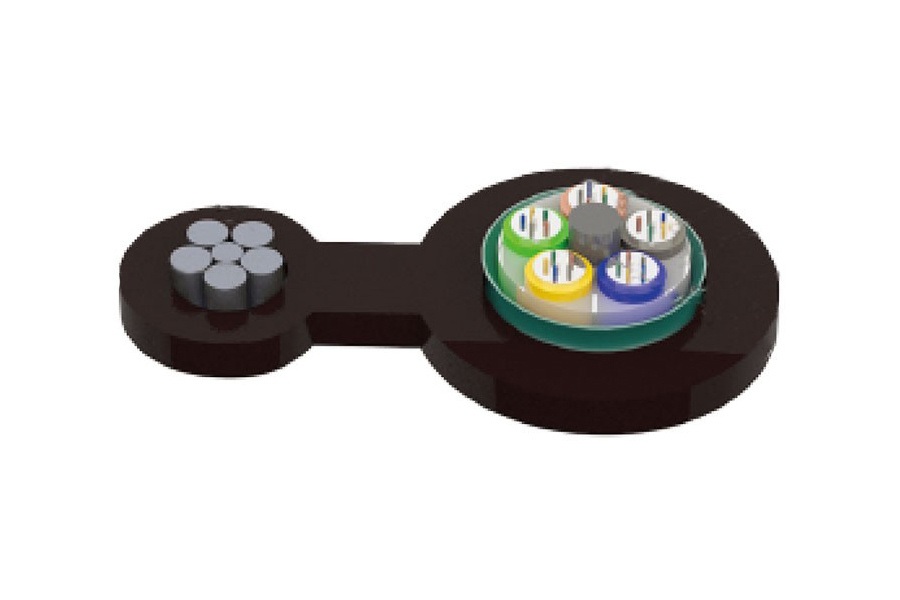

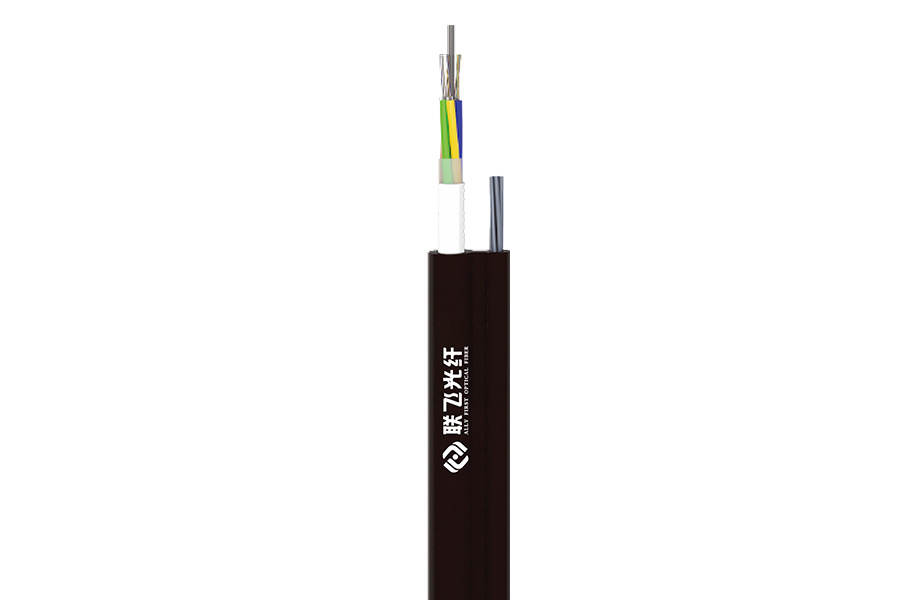

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes and (fillers) are stranded around the strength member into a compact and circular cable core. After an Aluminum Polyethylene Laminate (APL) moisture barrier is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure. Figure 8 cable series GYTC8Y, GYTC8S are also available on request. This type of cable is specifically applied for self-supporting aerial installation.
- Product features
-
• High tensile strength of stranded wires meet the requirement of self-supporting and reduce installation cost;
• Good mechanical and temperature performance;
• High strength loose tube that is hydrolysis resistant;
• Special tube filling compound ensure a critical protection of fiber;
• The following measures are taken to ensure the cable watertight:
- Steel wire used as the central strength member;
- Loose tube filling compound;
- 100% cable core filling:
- APL moisture barrier
- Technical Characteristics
-
Type
Fiber count
Tubes
Fillers
Cable weight
（kg/km）
Tensile strength
Long/short term(N)
Crush Long/
short term(N/100mm)GYTC8A-2~6Xn
2~6
1
4
158
According to the diameter of the suspension wire
300/1000
GYTC8A-8~12Xn
8~12
2
3
158
GYTC8A-14~18Xn
14~18
3
2
158
GYTC8A-20~24Xn
20~24
4
1
158
GYTC8A-26~30Xn
26~30
5
0
158
GYTC8A-32~36Xn
32~36
6
0
167
GYTC8A-38~48Xn
38~48
4
1
172
GYTC8A-50~60Xn
50~60
5
0
172
Transport/storage temperature: -40°C to +70°C
Standard length: 2,000m ; other lengths are also available
