Stranded Loose Tube Non-metallic Central Strength Member Cable (GYHTY）

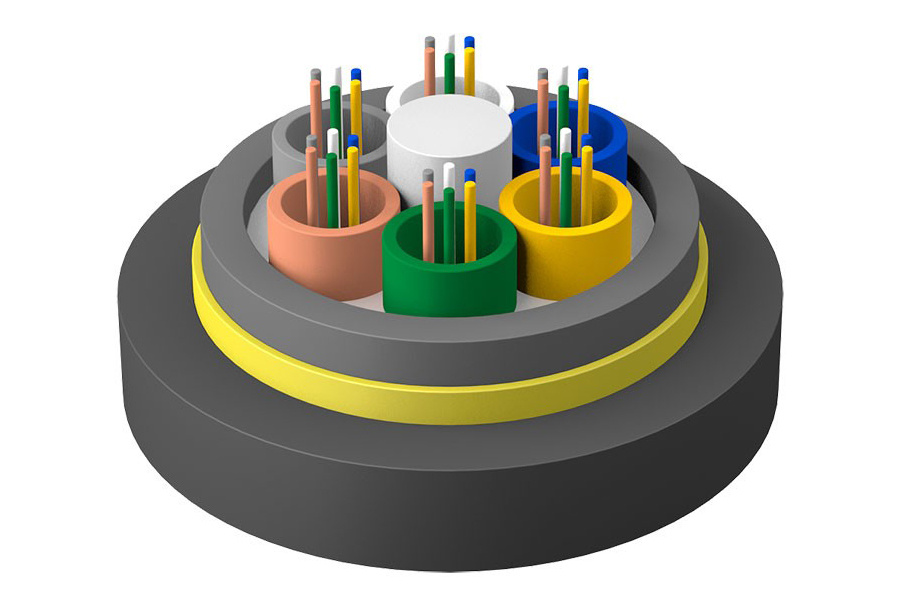

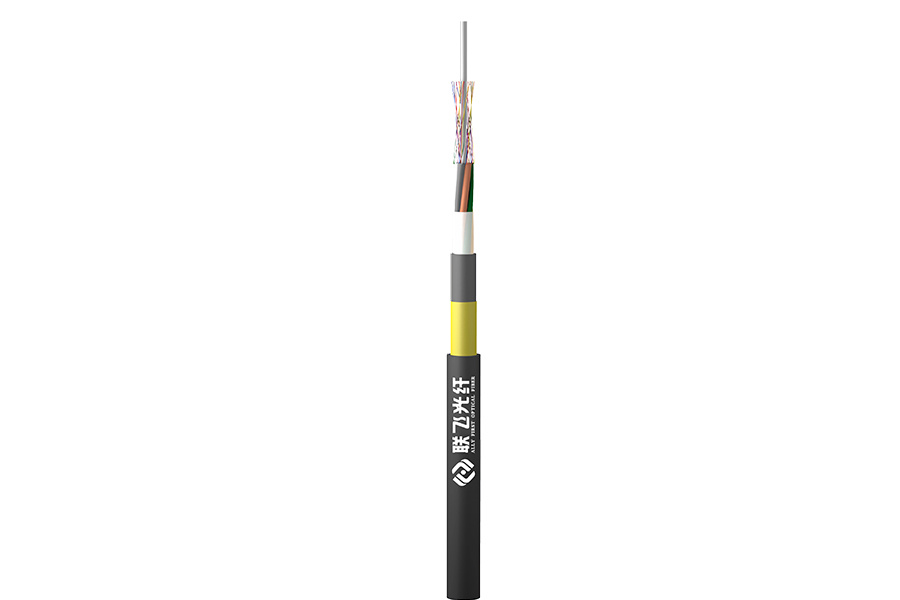

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. Tubes and fillers are stranded around the strength member into a compact and circular cable core. After the cable core is filled with the filling compound, it is covered with thin PE (polyethylene) inner sheath. Then a layer of aramid yarn is applied as additional strength member and the cable is completed with a PE outer sheath.
- Product features
-
• Crush resistance and flexibility
• Good mechanical and temperature performance
• Aramid yarn strength member ensures good performance of tensile strength
• High strength loose tube that is hydrolysis resistant
• Special tube filling compound ensure a critical protection of fiber
• The following measures are taken to ensure the cable watertight:
- Single Fiber Reinforced Plastic as the central strength member
- Loose tube filling compound
- 100% cable core filling
- Technical Characteristics
-
Type
Fiber count
Tubes
Fillers
Cable weight
（kg/km）
Tensile strength
Long/short term(N)
Crush Long/
short term(N/100mm)GYHTY-4~6Xn
4~6
1
5
84
600/1500
300/1000
GYHTY-8~12Xn
8~12
2
4
84
GYHTY-14~18Xn
14~18
3
3
84
GYHTY-20~24Xn
20~24
4
2
84
GYHTY-26~30Xn
26~30
5
1
84
GYHTY-32~36Xn
32~36
6
0
84
Transport/storage temperature: -40°C to +70°C
Standard length: 2,000m ; other lengths are also available
