All Dielectric Self Supporting Cable (ADSS)

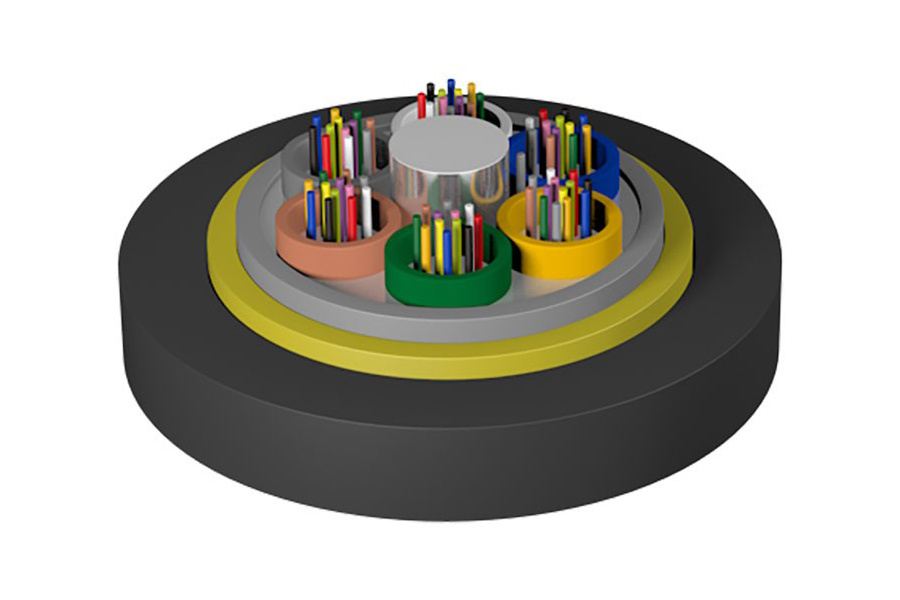

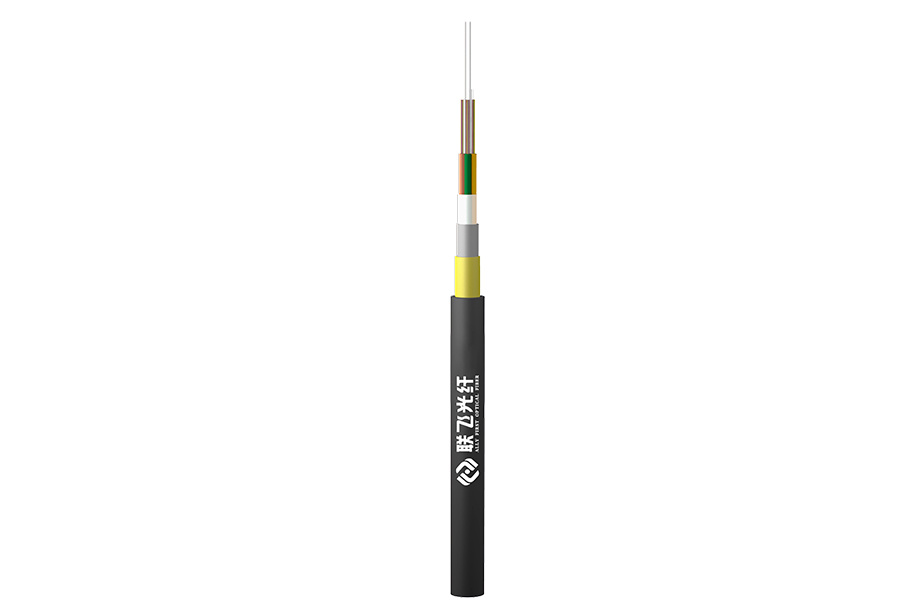

ADSS cable is loose tube stranded. The 250µm fibers are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes and fillers are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. It is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
- Product features
-
• Easy installation without interruption of power service.
• AT sheath provides excellent protection against tracking effect;
• Lightweight and small in diameter to reduce the load on tower structures caused by cable weight, wind, and ice;
• Large span with the largest span of over 1000m;
• Excellent tensile properties and temperature performance;
• The life expectancy greater than 30 years;
- Technical Characteristics
-
Type
Ref. Outer Diameter
(mm)Rec. Daily wax . Working Tension
(kN)Tensile Strength (KN)
Break Strength (KN)
Strength Member CSA (mm2)
Modulus of Elasticity (kN/mm2)
Heat Expansion Coefficient
x10-6/KSuitable Span
(NESC Standard m)PE Sheath
AT Sheath
A
B
C
D
11.8
117
124
1.5
4
10
4.6
7.6
1.8
160
100
140
100
12.0
121
129
2.25
6
15
7.6
8.3
1.5
230
150
200
150
12.3
126
134
3.0
8
20
10.35
9.45
1.3
300
200
290
200
12.6
133
141
3.6
10
24
13.8
10.8
1.2
370
250
350
250
12.8
138
145
4.5
12
30
14.3
11.8
1.0
420
280
400
280
13.1
145
153
5.4
15
36
18.4
13.6
0.9
480
320
460
320
13.5
155
163
6.75
18
45
22.0
16.4
0.6
570
380
550
380
13.8
163
171
7.95
22
53
26.4
18.0
0.3
670
460
650
460
14.4
177
186
9.0
26
60
32.2
19.1
0.1
750
530
750
510
14.6
182
191
10.5
28
70
33.0
19.6
0.1
800
560
800
560
14.8
195
204
12.75
34
85
40.0
20.1
0.1
880
650
880
650
Transport/storage temperature: -40°C to +70°C
Standard length: 2,000m ; other lengths are also available
