Stranded Loose Tube Non-metallic Strength Member Non-armored Cable (GYFTA)

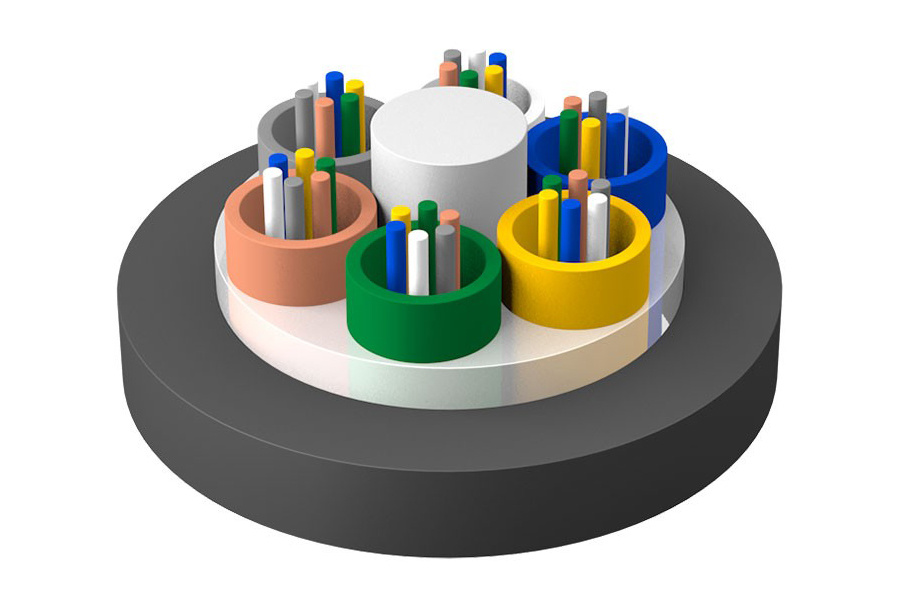

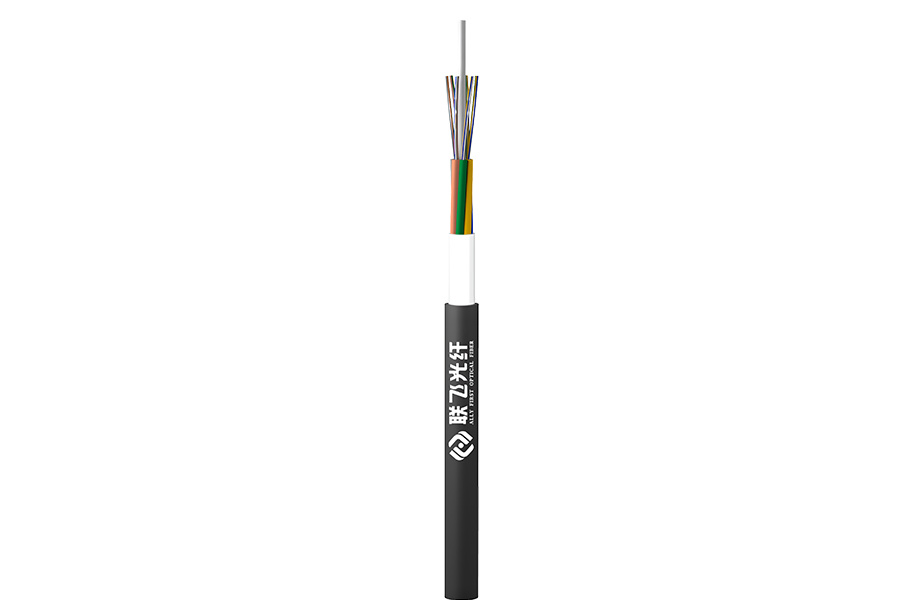

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress. Then, the cable is completed with a PE sheath.
- Product features
-
• Good mechanical and temperature performance;
• High strength loose tube that is hydrolysis resistant;
• Special tube filling compound ensure a critical protection of fiber;
• Crush resistance and flexibility:
• The following measures are taken to ensure the cable watertight:
- Single Fiber Reinforced Plastic as the central strength member.
- Loose tube filling compound;
- 100% cable core filling;
- APL moisture barrier
- Technical Characteristics
-
Type
Fiber count
Tubes
Fillers
Cable weight
（kg/km）
Tensile strength
Long/short term(N)
Crush Long/
short term(N/100mm)GYFTY-2~6Xn
2~6
1
5
99 400/1000 300/1000
GYFTY-8~12Xn
8~12
2
4
99 GYFTY-14~18Xn
14~18
3
3
99 GYFTY-20~24Xn
20~24
4
2
99 GYFTY-26~30Xn
26~30
5
1
99 GYFTY-32~36Xn
32~36
6
0
99 GYFTY-2~6Xn
2~6
1
6
111 GYFTY-8~12Xn
8~12
2
5
111 GYFTY-14~18Xn
14~18
3
4
111 GYFTY-20~24Xn
20~24
4
3
111 600/1500 GYFTY-26~30Xn
26~30
5
2
111 GYFTY-32~36Xn
32~36
6
1
111 GYFTY-38~42Xn
38~42
7
0
111 GYFTY-44~48Xn
44~48
4
3
122 GYFTY-50~60Xn
50~60
5
2
122 GYFTY-62~72Xn
62~72
6
1
122 GYFTY-2~6Xn
2~6
1
7
127 1000/3000 GYFTY-8~12Xn
8~12
2
6
127 GYFTY-14~18Xn
14~18
3
5
127 GYFTY-20~24Xn
20~24
4
4
127 GYFTY-26~30Xn
26~30
5
3
127 GYFTY-32~36Xn
32~36
6
2
127 GYFTY-38~42Xn
38~42
7
1
127 GYFTY-44~48Xn
44~48
8
0
127 GYFTY-50~60Xn
50~60
5
3
136 GYFTY-62~72Xn
62~72
6
2
136 GYFTY-74~84Xn
74~84
7
1
136 GYFTY-86~96Xn
86~96
8
0
136 GYFTY-98~108Xn
98~108
9
1
161 GYFTY-110~120Xn
110~120
10
0
161 GYFTY-122~132Xn
122~132
11
1
195 GYFTY-134~144Xn
134~144
12
0
195 Transport/storage temperature: -40°C to +70°C
Standard length: 2,000m ; other lengths are also available
