Stranded Loose Tube Non-armored Cable (GYTA）

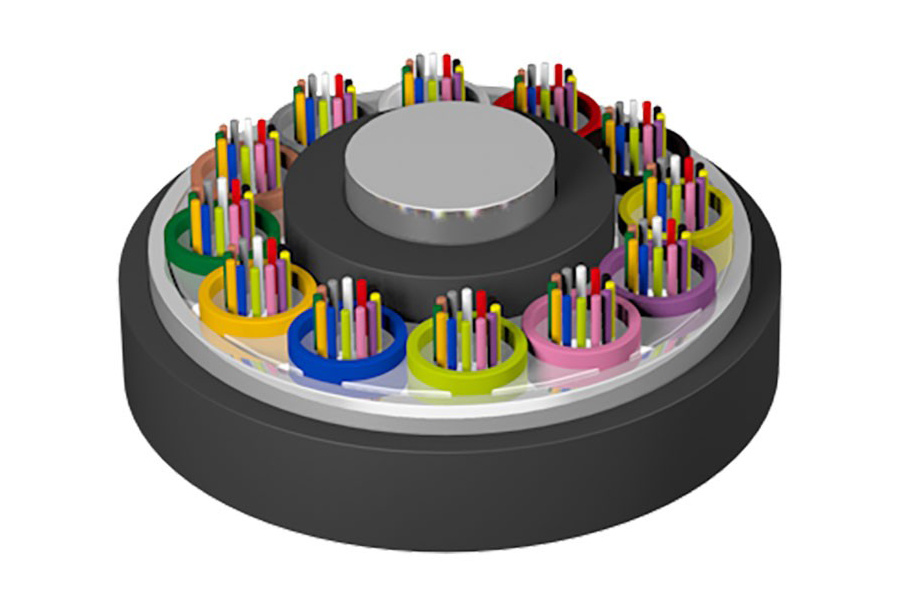

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then, the cable is completed with a PE sheath.
- Product features
-
• Good mechanical and temperature performance;
• High strength loose tube that is hydrolysis resistant;
• Special tube filling compound ensure a critical protection of fiber;
• Specially designed compact structures is good at preventing loose tubers from shrinking;
• PE sheath protects cable from ultraviolet radiation;
• The following measures are taken to ensure the cable watertight;
- Steel wire used as the central strength member;
- Loose tube filling compound;
- 100% cable core filling;
- APL moisture barrier
- Technical Characteristics
-
Type
Fiber count
Tubes
Fillers
Cable weight
（kg/km）
Tensile strength
Long/short term(N)
Crush Long/
short term(N/100mm)GYTA-2~6Xn
2~6
1
4
76
600/1500
300/1000
GYTA-8~12Xn
8~12
2
3
76
GYTA-14~18Xn
14~18
3
2
76
GYTA-20~24Xn
20~24
4
1
76
GYTA-26~30Xn
26~30
5
0
76
GYTA-32~36Xn
32~36
6
0
85
GYTA-38~48Xn
38~48
4
1
90
GYTA-50~60Xn
50~60
5
0
90
GYTA-62~72Xn
62~72
6
0
113
GYTA-74~84Xn
74~84
7
1
136
GYTA-86~96Xn
86~96
8
0
136
GYTA-98~108Xn
98~108
9
1
163
GYTA-110~120Xn
110~120
10
0
163
GYTA-122~132Xn
122~132
11
1
190
GYTA-134~144Xn
134~144
12
0
190
GYTA-146~216Xn
146~216
13~18
5~0
190
GYTA-288Xn
288
24
0
239
Transport/storage temperature: -40°C to +70°C
Standard length: 2,000m ; other lengths are also availabl
