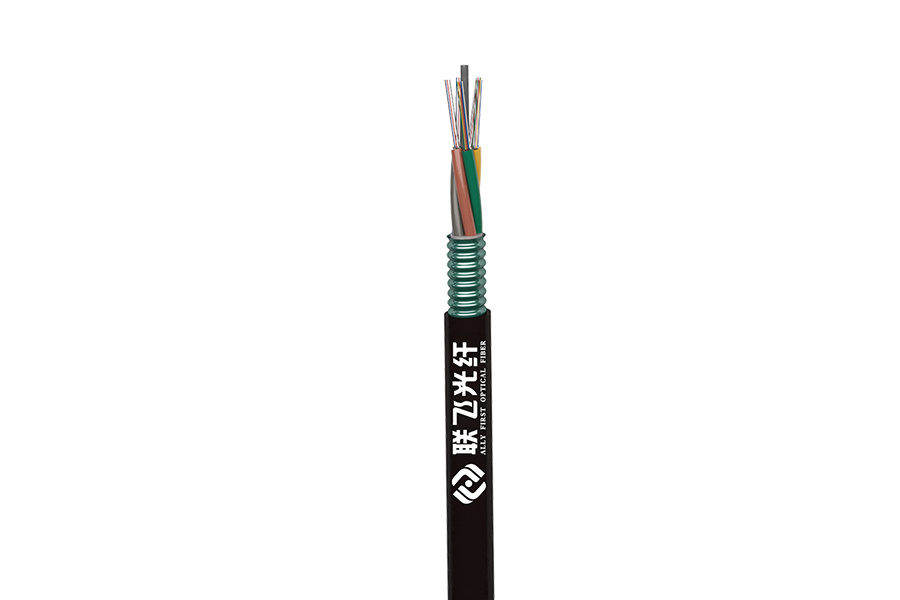

Stranded Loose Tube Light-armored Cable (GYTS)

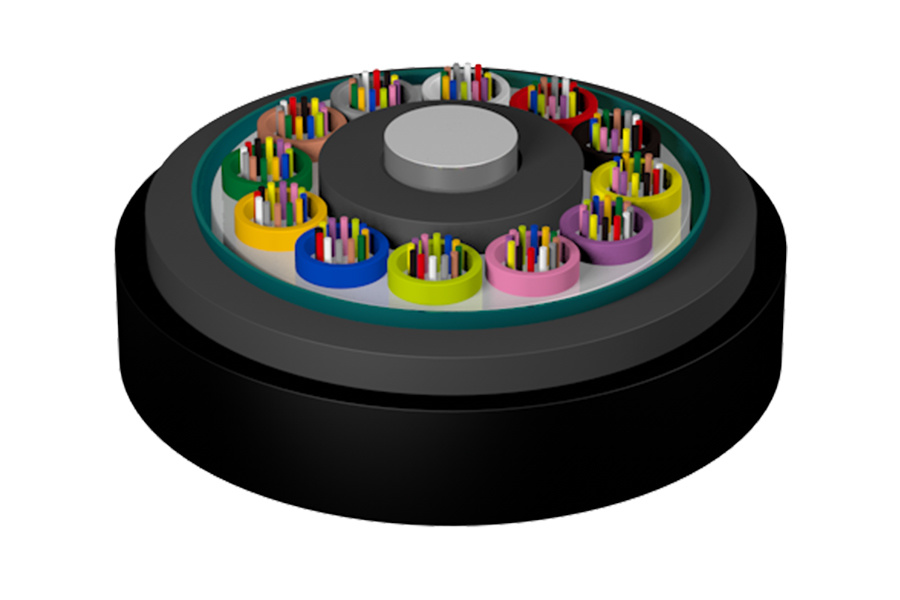

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. Double-sided Plastic-coated Steel Belt (PSP) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then, the cable is completed with a PE sheath.
- Product features
-
• Good mechanical and temperature performance;
• High strength loose tube that is hydrolysis resistant;
• Special tube filling compound ensure a critical protection of fiber;
• Specially designed compact structures is good at preventing loose tubers from shrinking;
• PE sheath protects cable from ultraviolet radiation;
- The following measures are taken to ensure the cable watertight;
- Steel wire used as the central strength member;
- Loose tube filling compound;
- 100% cable core filling;
- Armored with PSP
- Technical Characteristics
-
Type
Fiber count
Tubes
Fillers
Cable weight
（kg/km）
Tensile strength
Long/short term(N)
Crush Long/
short term(N/100mm)GYTS-2~6Xn
2~6
1
4
96
600/1500
300/1000
GYTS-8~12Xn
8~12
2
3
96
GYTS-14~18Xn
14~18
3
2
96
GYTS-20~24Xn
20~24
4
1
96
GYTS-26~30Xn
26~30
5
0
96
GYTS-32~36Xn
32~36
6
0
105
GYTS-38~48Xn
38~48
4
1
111
GYTS-50~60Xn
50~60
5
0
111
GYTS-62~72Xn
62~72
6
0
138
GYTS-74~84Xn
74~84
7
1
168
GYTS-86~96Xn
86~96
8
0
168
GYTS-98~108Xn
98~108
9
1
195
GYTS-110~120Xn
110~120
10
0
195
GYTS-122~132Xn
122~132
11
1
228
GYTS-134~144Xn
134~144
12
0
228
GYTS-146~216Xn
146~216
13~18
5~0
228
GYTS-288Xn
288
24
0
283
Transport/storage temperature: -40°C to +70°C
Standard length: 2,000m ; other lengths are also availabl
