Stranded Loose Tube Non-metallic Central Strength Member Double Armored Flame-retardant Cable（GYFTZA53）

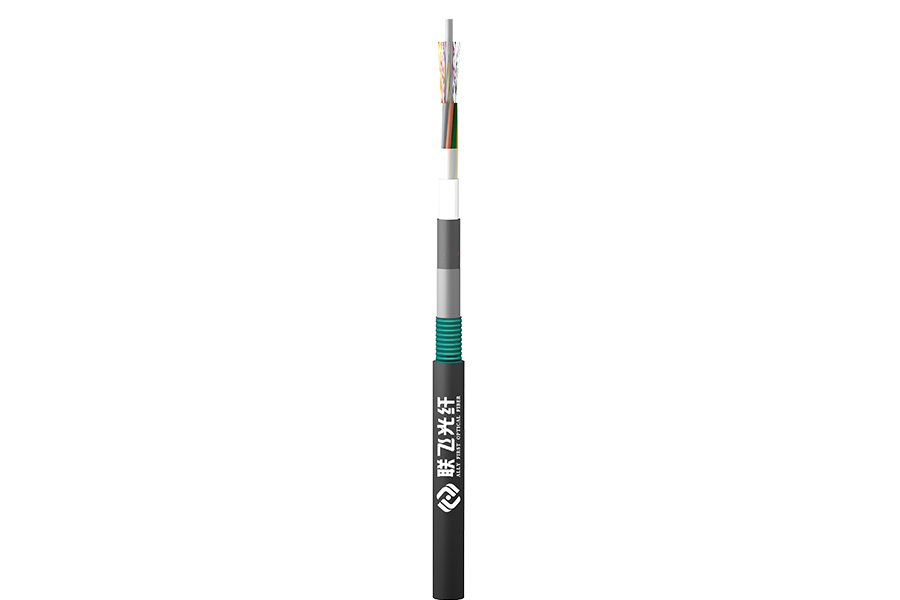

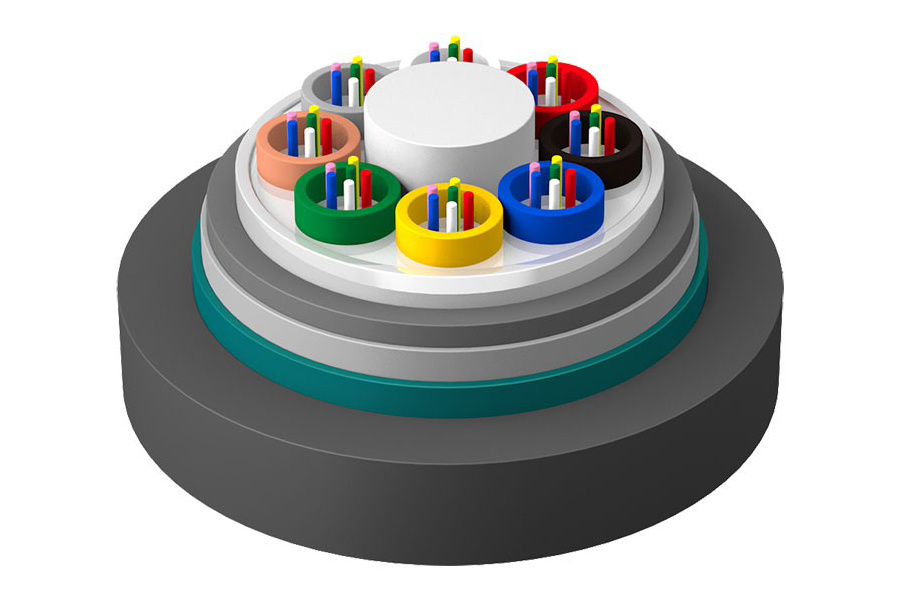

The fibers, 250µm are positioned in a loose tube made of a high-modulus plastic and filled with tube filling compound. The tubes (and fillers) are stranded around a metallic central strength member to form a cable core. The core is armored with Aluminum Polyethylene Laminate (APL). Then a LSZH inner sheath is extruded and armored with double-sided plastic-coated steel belt (PSP). Finally, a LSZH outer sheath is extruded.
- Product features
-
• good mechanical and temperature performances
• High strength loose tube that is hydrolysis resistant;
• Special tube filling compound ensure a critical protection of fiber
• LSZH sheath ensuring good flame-retardant performance
• Crush resistance and flexibility
• The following measures are taken to ensure the cable watertight:
- Single FRP used as the central strength member
- Loose tube filling compound;
- 100% cable core filling
- APL moisture barrier
- PSP enhanced moisture resistance;
- Fine water-blocking materials prevent vertical fluid penetration
- Technical Characteristics
-
Type
Fiber count
Tubes
Fillers
Cable weight
（kg/km）
Tensile strength
Long/short term(N)
Crush Long/
short term(N/100mm)GYFTZA53-2~6Xn
2~6
1
7
275
1000/3000
1000/3000
GYFTZA53-8~12Xn
8~12
2
6
275
GYFTZA53-14~18Xn
14~18
3
5
275
GYFTZA53-20~24Xn
20~24
4
4
275
GYFTZA53-26~30Xn
26~30
5
3
275
GYFTZA53-32~36Xn
32~36
6
2
275
GYFTZA53-38~42Xn
38~42
7
1
275
GYFTZA53-44~48Xn
44~48
8
0
275
GYFTZA53-50~60Xn
50~60
5
3
290
GYFTZA53-62~72Xn
62~72
6
2
290
GYFTZA53-74~84Xn
74~84
7
1
290
GYFTZA53-86~96Xn
86~96
8
0
290
GYFTZA53-98~108Xn
98~108
9
1
327
GYFTZA53-110~120Xn
110~120
10
0
327
GYFTZA53-122~132Xn
122~132
11
1
384
GYFTZA53-134~144Xn
134~144
12
0
384
- Transport/storage temperature: -40°C to +70°C
-
Standard length: 2,000m ; other lengths are also available
