Stranded Loose Tube Non-Armored Flame-retardant Cable (GYTZA)

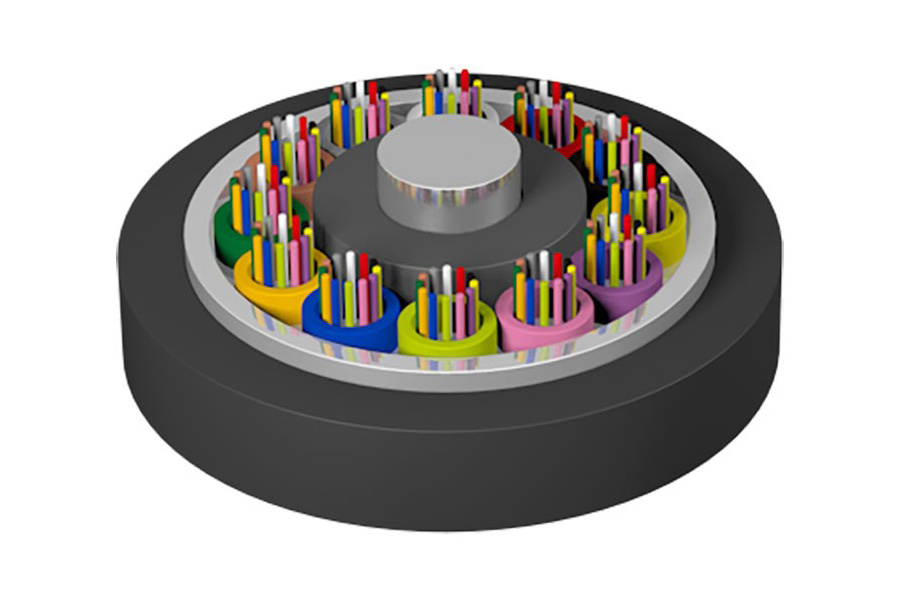

The fibers, 250m, are positioned in a loose tube made of a high-modulus plastic and filled with tube filling compound. The tubes (and fillers) are stranded around a metallic central strength member to form a cable core. The core is armored with laminated aluminum tape. Then, a LSZH outer sheath is extruded.
- Product features
-
• good mechanical and temperature performances
• High strength loose tube that is hydrolysis resistant;
• Special tube filling compound ensure a critical protection of fiber
• Specially designed compact structure is good at preventing loose tubes from shrinking
• Crush resistance and flexibility
• LSZH sheath ensuring good flame-retardant performance
• The following measures are taken to ensure the cable watertight:
- Steel wire used as the central strength member
- Loose tube filling compound;
- 100% cable core filling
- APL moisture barrier
- Technical Characteristics
-
Type
Fiber count
Tubes
Fillers
Cable weight
（kg/km）
Tensile strength
Long/short term(N)
Crush Long/
short term(N/100mm)GYTZA-2~6Xn
2~6
1
4
101
600/1500
300/1000
GYTZA-8~12Xn
8~12
2
3
101
GYTZA-14~18Xn
14~18
3
2
101
GYTZA-20~24Xn
20~24
4
1
101
GYTZA-26~30Xn
26~30
5
0
101
GYTZA-32~36Xn
32~36
6
0
111
GYTZA-38~48Xn
38~48
4
1
117
GYTZA-50~60Xn
50~60
5
0
117
GYTZA-62~72Xn
62~72
6
0
144
GYTZA-74~84Xn
74~84
7
1
171
GYTZA-86~96Xn
86~96
8
0
171
GYTZA-98~108Xn
98~108
9
1
198
GYTZA-110~120Xn
110~120
10
0
198
GYTZA-122~132Xn
122~132
11
1
229
GYTZA-134~144Xn
134~144
12
0
229
GYTZA-146~216Xn
146~216
13~18
5~0
229
Transport/storage temperature: -40°C to +70°C
Standard length: 2,000m;other lengths are also available
