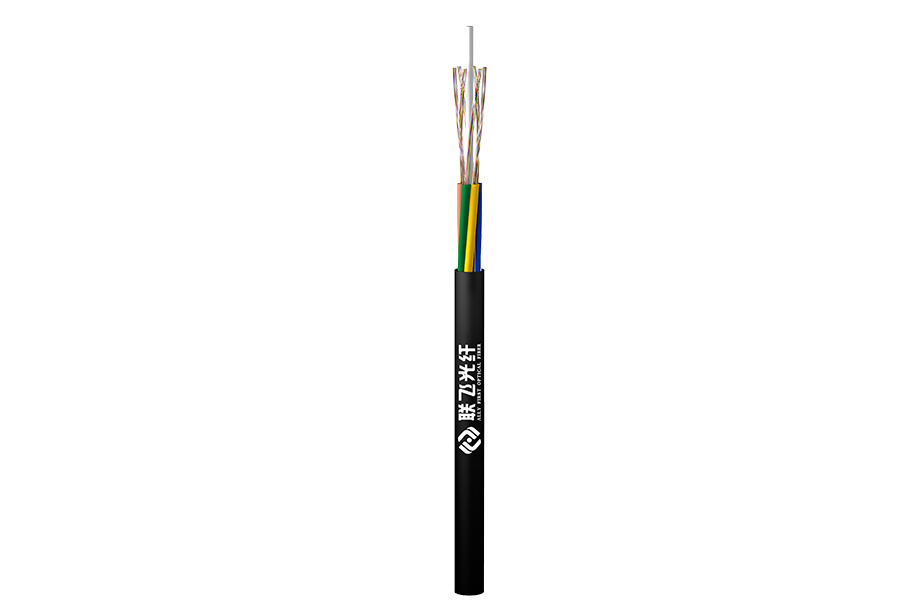

Stranded Loose Tube Air-blown Micro Cable (GCYFY)

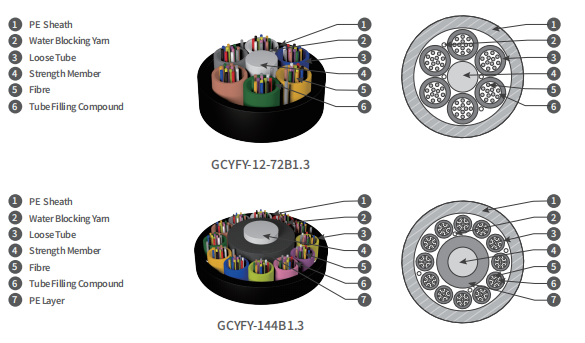

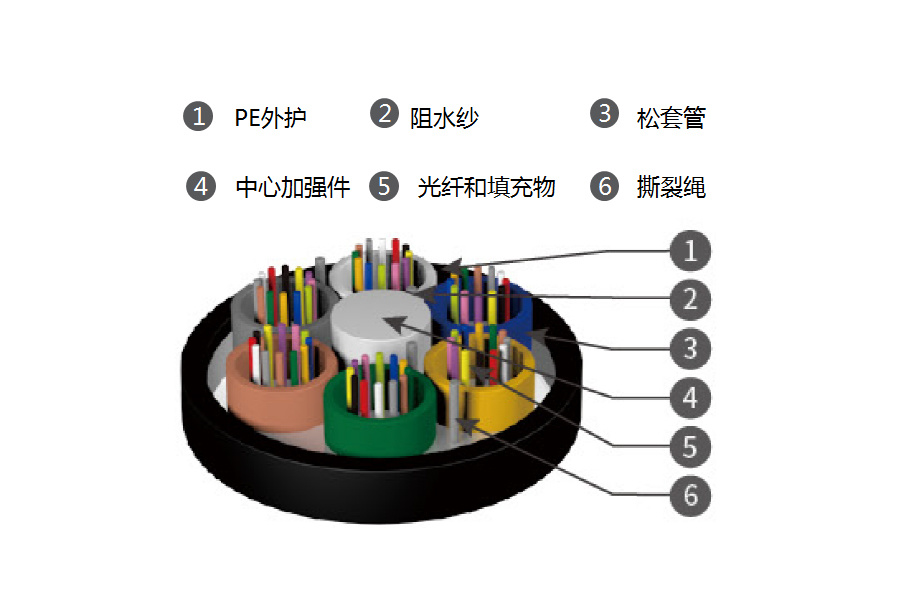

Fibers are positioned in a loose tube made of a high-modulus plastic and filled with tube filling compound. The tubes (and fillers) are stranded around a non-metallic central strength member and surrounded with dry water-blocking material to form a cable core. An extremely thin outer PE sheath is extruded outside the core.
- Product features:
-
• Small size and light weight
• Tube filling compound providing key protection for fibres
• High fiber density, allowing full use of duct holes
• Allowing to blow by phases to reduce initial investment
• High blowing speed up to 50m/min, and long blowing distance up to 1000m
• Allowing to blow out and replace with new cables to keep technical superiority
• Avoiding destructive excavations and no need to pay high fees for deploying permission, applicable for constructions in crowded metropolitan area networks
• Allowing to cut micro ducts anywhere anytime for branch without influences on other cables, saving manholes, hand holes and cable joints
-
- Technical Characteristics
-
Type
O.D.
(mm)
Weight
(Kg/km)
Tensile strength
Long/short term （N）
Crush
Long/short term
（N/100mm）
Number of tubes/fibre
count per tube
GCYFY-12B1.3 4.5 16 0.3G/1.0G 150/500 2/6 GCYFY-24B1.3 4.5 16 0.3G/1.0G 150/500 4/6 GCYFY-36B1.3 4.5 16 0.3G/1.0G 150/500 6/6 GCYFY-24B1.3 5.4 26 0.3G/1.0G 150/500 2/12 GCYFY-48B1.3 5.4 26 0.3G/1.0G 150/500 4/12 GCYFY-72B1.3 5.4 26 0.3G/1.0G 150/500 6/12 GCYFY-96B1.3 6.1 33 0.3G/1.0G 150/500 8/12 GCYFY-144B1.3 7.9 52 0.3G/1.0G 150/500 12/12 GCYFY-192B1.3 7.9 52 0.3G/1.0G 150/500 16/12 GCYFY-216B1.3 7.9 52 0.3G/1.0G 150/500 18/12 GCYFY-288B1.3 9.3 80 0.3G/1.0G 150/500 24/12 GCYFY-144B1.3 7.3 42 0.3G/1.0G 150/500 6/24 GCYFY-192B1.3 8.8 76 0.3G/1.0G 150/500 8/24 GCYFY-288B1.3 11.4 110 0.3G/1.0G 150/500 12/24 GCYFY-432B1.3 11.4 105 0.3G/1.0G 150/500 18/24 GCYFY-576B1.3 13.4 140 0.3G/1.0G 150/500 24/24 -
Note: G is the weight of optical cable per km.
- Environmental Characteristics
-
• Transport/storage temperature: -40℃ to +70℃
- Applications
-
• The cable can be used as the drop cable of feeder segments in FTTH networks and can be laid by air blowing to connect the branch point with the access point for subscribers. The cable is also applicable in backbone networks , metropolitan area networks and access networks.
- Delivery Length
-
• Standard length: 2,000m ; other lengths are also available.
- Specification parameters
| Product Specifications | 12/24/36 | 24/48/72 | 96 | 144 | 192 | 216 | 288 | 144 | 192 | 288 | 432 | 576 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Number of cores per tube | 6 | 12 | 12 | 12 | 12 | 12 | 12 | 24 | 24 | 24 | 24 | 24 | |
| Number of casings | 2/4/6 | 2/4/6 | 8 | 12 | 16 | 18 | 24 | 6 | 8 | 12 | 18 | 24 | |
| Outer diameter of optical cable (mm) | 4.5 | 5.4 | 6.1 | 7.9 | 7.9 | 7.9 | 9.3 | 7.3 | 8.8 | 11.4 | 11.4 | 13.4 | |
| Weight of optical cable (Kg/km) | 16 | 26 | 6.1 | 36/29 | 52 | 52 | 80 | 42 | 76 | 110 | 105 | 140 | |
| Maximum tensile force (N) | 200 | 600 | 800 | 800 | 600 | 600 | 1000 | 800 | 1000 | 1200 | 800 | 1200 | |
| Allow long-term/short-term tension (N) | 0.3G/1.0G | ||||||||||||
| Allow for long-term/short-term flattening force (N/100mm) | 150/500 | ||||||||||||
| Applicable microtubules (mm) | 8/12 | 10/14 | 10/14 | 10/14 | 12/14 | 10/14 | 12/16 | 14/16 | 14/16 | 16/20 | |||
| Typical blowing distance (m) | ≥1200 | ||||||||||||
| Transportation/storage/usage temperature | -40℃ ~ +70℃ | ||||||||||||
| Installation temperature | -5℃ ~ +50℃ | ||||||||||||
Note: G represents the weight of a 1Km optical cable
- 产品描述
- 规格参数
-
- Commodity name: Stranded Loose Tube Air-blown Micro Cable (GCYFY)
Fibers are positioned in a loose tube made of a high-modulus plastic and filled with tube filling compound. The tubes (and fillers) are stranded around a non-metallic central strength member and surrounded with dry water-blocking material to form a cable core. An extremely thin outer PE sheath is extruded outside the core.
- Product features:
-
• Small size and light weight
• Tube filling compound providing key protection for fibres
• High fiber density, allowing full use of duct holes
• Allowing to blow by phases to reduce initial investment
• High blowing speed up to 50m/min, and long blowing distance up to 1000m
• Allowing to blow out and replace with new cables to keep technical superiority
• Avoiding destructive excavations and no need to pay high fees for deploying permission, applicable for constructions in crowded metropolitan area networks
• Allowing to cut micro ducts anywhere anytime for branch without influences on other cables, saving manholes, hand holes and cable joints
-
- Technical Characteristics
-
Type
O.D.
(mm)
Weight
(Kg/km)
Tensile strength
Long/short term （N）
Crush
Long/short term
（N/100mm）
Number of tubes/fibre
count per tube
GCYFY-12B1.3 4.5 16 0.3G/1.0G 150/500 2/6 GCYFY-24B1.3 4.5 16 0.3G/1.0G 150/500 4/6 GCYFY-36B1.3 4.5 16 0.3G/1.0G 150/500 6/6 GCYFY-24B1.3 5.4 26 0.3G/1.0G 150/500 2/12 GCYFY-48B1.3 5.4 26 0.3G/1.0G 150/500 4/12 GCYFY-72B1.3 5.4 26 0.3G/1.0G 150/500 6/12 GCYFY-96B1.3 6.1 33 0.3G/1.0G 150/500 8/12 GCYFY-144B1.3 7.9 52 0.3G/1.0G 150/500 12/12 GCYFY-192B1.3 7.9 52 0.3G/1.0G 150/500 16/12 GCYFY-216B1.3 7.9 52 0.3G/1.0G 150/500 18/12 GCYFY-288B1.3 9.3 80 0.3G/1.0G 150/500 24/12 GCYFY-144B1.3 7.3 42 0.3G/1.0G 150/500 6/24 GCYFY-192B1.3 8.8 76 0.3G/1.0G 150/500 8/24 GCYFY-288B1.3 11.4 110 0.3G/1.0G 150/500 12/24 GCYFY-432B1.3 11.4 105 0.3G/1.0G 150/500 18/24 GCYFY-576B1.3 13.4 140 0.3G/1.0G 150/500 24/24 -
Note: G is the weight of optical cable per km.
- Environmental Characteristics
-
• Transport/storage temperature: -40℃ to +70℃
- Applications
-
• The cable can be used as the drop cable of feeder segments in FTTH networks and can be laid by air blowing to connect the branch point with the access point for subscribers. The cable is also applicable in backbone networks , metropolitan area networks and access networks.
- Delivery Length
-
• Standard length: 2,000m ; other lengths are also available.
-
- Specification parameters
Product Specifications 12/24/36 24/48/72 96 144 192 216 288 144 192 288 432 576 Number of cores per tube 6 12 12 12 12 12 12 24 24 24 24 24 Number of casings 2/4/6 2/4/6 8 12 16 18 24 6 8 12 18 24 Outer diameter of optical cable (mm) 4.5 5.4 6.1 7.9 7.9 7.9 9.3 7.3 8.8 11.4 11.4 13.4 Weight of optical cable (Kg/km) 16 26 6.1 36/29 52 52 80 42 76 110 105 140 Maximum tensile force (N) 200 600 800 800 600 600 1000 800 1000 1200 800 1200 Allow long-term/short-term tension (N) 0.3G/1.0G Allow for long-term/short-term flattening force (N/100mm) 150/500 Applicable microtubules (mm) 8/12 10/14 10/14 10/14 12/14 10/14 12/16 14/16 14/16 16/20 Typical blowing distance (m) ≥1200 Transportation/storage/usage temperature -40℃ ~ +70℃ Installation temperature -5℃ ~ +50℃ Note: G represents the weight of a 1Km optical cable
